SPECIFICATIONS

Air Volume: 50m³/h

Anion Density: no lonizer

Applicable area: 20-100CBM

Application: 10-20m³,Room/Office/Hotel/Hospital

Benzene Removal Rate: 99.00%

Cabinet: ABS

Capacity (CFM): 99%

Certificate: CE

Certification: ce,EMC,ROHS

Coverage Area: 35-60m²

Dimension: other

Feeding Raw Material: Ambient Air

Formaldehyde Removal Rate: 99.90%

Function: Sterilize

Hign-concerned Chemical: None

Input voltage: 110V/ 220V; 50/60Hz

Installation: Mini

Net weight: 0.6 KGS

Noise: ≤10dB

OZOTEK Model: AP200

Operation: Remote Controller/Manual operation

Origin: Mainland China

Oxygen Supply: Below 1L/min

Ozone output: 200mg/H

Power (W): 5w

Power Source: Electrical,Solar

Power Supply: Direct Current

Product name: Ozone Air purifier

Style: Air Purifier

Type: Ozone Generator

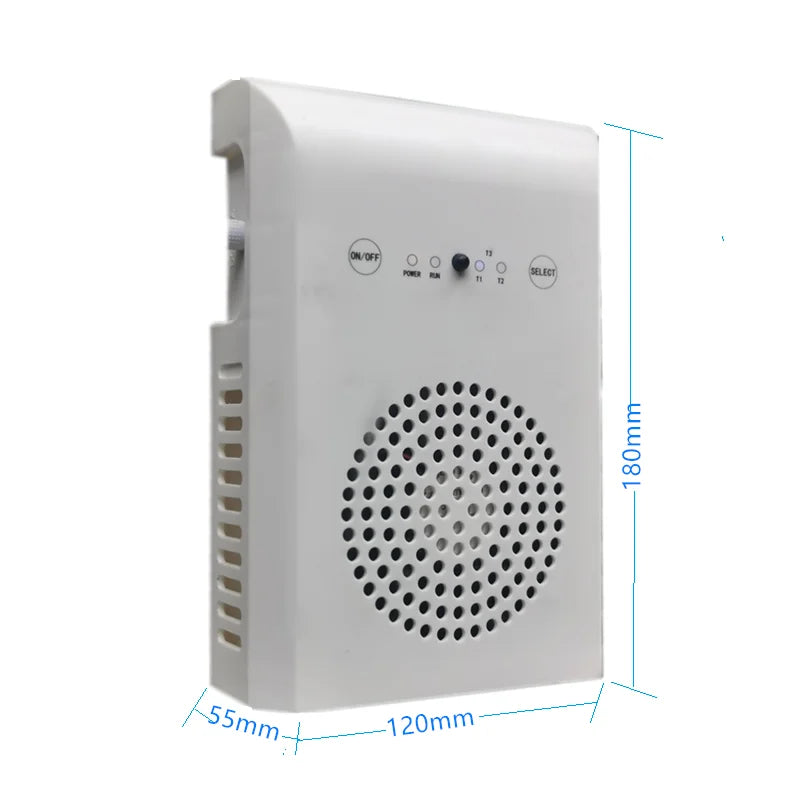

Unit Dimension: 18.2*12*5.2*cm

Usage Condition: Household

Voltage: 12 V

Wind Speed: Standard

Working voltage: 12VDC

OZOTEK-Ozone Car Generator, 12V, AP200, 200mg/L,

Used on Household, Free Shipping

PRODUCT FEATURE

Both touch operational & remote control system

ABS cabinet

Three working mode for the different requirements.

Portable style

Easy operation

Working for car disinfection

CE (LVD & EMC) approval

OPERATION

Please check whether the package of the product is complete; the package of the product includes as following.

1. Air disinfector AP200,

2. Remote controller

3. Power adapter

There are two operation modes of AP200: touch operation and remote control operation;

1. Prepare a suitable battery and put it into the remote control

2. Plug power adapter in, the power indicator will be on;

MANUAL OPERTION

1. Press ON/OFF by hand, the ozone disinfector will start running. The running indictor will be on

2. Press SELECT to choose working time.

T1: Run for 10 seconds and rest for 1 minute; for 20-45 CBM

T2: Run for 20 seconds, rest for 30 seconds; for 50-70CBM

T3: Continuous running without rest. T1 and T2 indicator lights up at the same time; 75-100 CBM

REMOTE CONTROL

1. Put the suitable battery into the remote control;

2. Press ON/OFF button,the ozone disinfector will start running.The running indictor will be on.

3. Press SELECT to choose the working mode.

VEHICLE DISINFECTION

The machine can be used for disinfection in the car when working with adaptor, so as to achieve the disinfection of purification; the operation procedure as above.

PACKING:

1. Carton packing;

2. One unit per carton box;

SPARE PARTS INCLUDED:

1. 12VDC adaptor

2. Operation manual
