20G/H High end Water cooled generating tube only

$194.99 $288.99
Shipping calculated at checkout.
DESCRIPTION

SPECIFICATIONS



Air Volume: 50m³/h

Anion Density: no lonizer

Application: 2000M3 air/20 tons of water

Benzene Removal Rate: 99.97%

Capacity (CFM): AAAAA

Certification: ce,EMC,ROHS

Coverage Area: >61㎡

Formaldehyde Removal Rate: 99.99%

Function: Sterilize

Hign-concerned Chemical: None

Installation: Portable

Noise: ≤20dB

Origin: Mainland China

Oxygen Supply: Above 5L/min

Power (W): 200W

Power Source: A.C. Source,Solar

Power Supply: Alternating Current

Style: Air Purifier

Type: Ozone Generator

Usage Condition: Household

Voltage: 100-240V

Wind Speed: Standard



Remarks:

We have updated our website, the total product price = ex-factory price + shipping cost, which will be more reasonable.

This will ensure that you can buy this product at the lowest price.

Since the shipping cost of each country is not the same, if we set the shipping cost as free shipping, it will cause you have to pay more.

.

When we send this goods to you, we will fill in the low product value for you, in order to avoid you paying expensive tariffs.

Maybe you will get your goods directly, maybe the local customs will ask you to assist in customs clearance and pay the customs duties. You can check and understand the local customs policies.

If your goods stay at the local customs for a long time (maybe the local customs or the local courier company will call you), please contact the local courier company and provide them with a tracking number in order to assist in customs clearance and take away your goods.

If you are unwilling to assist in customs clearance and pay customs duties, please do not order it.

.

Our test equipment:

AC voltage regulator, DC voltage regulator, voltage stabilizer, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...

.

.

.

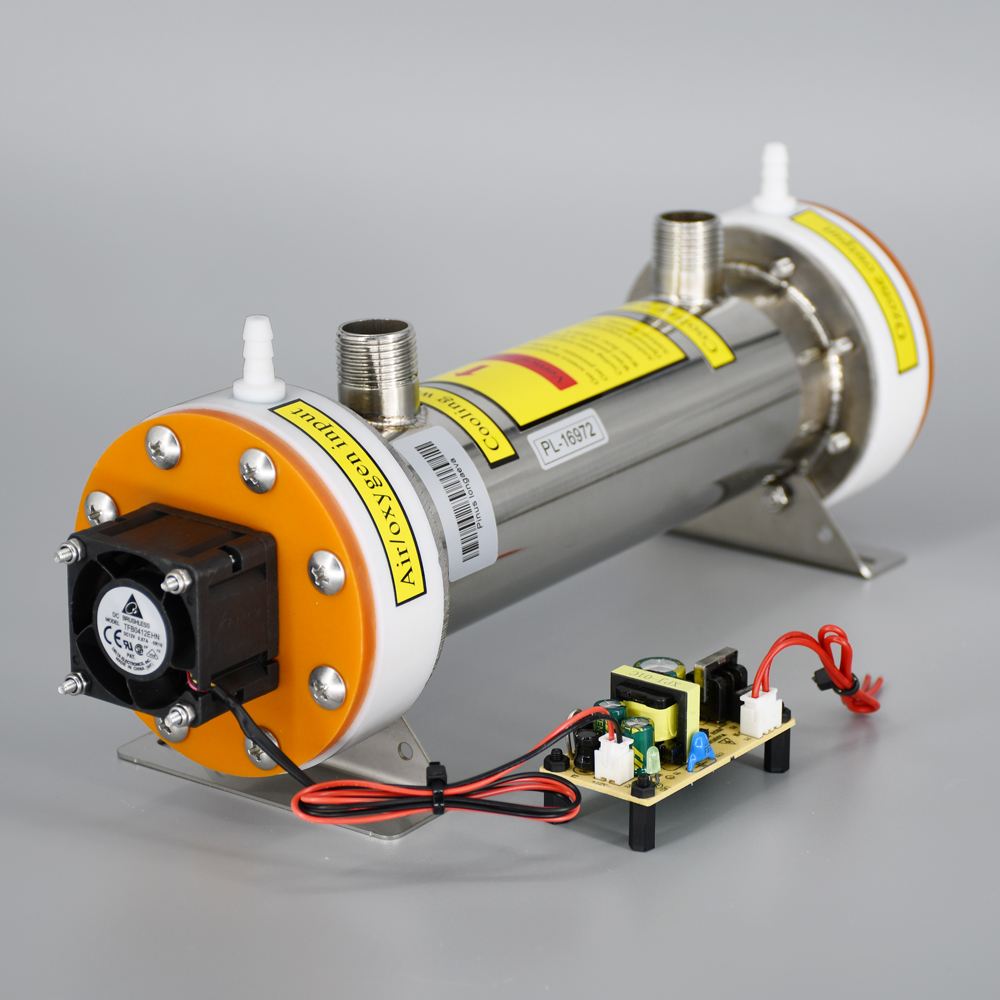

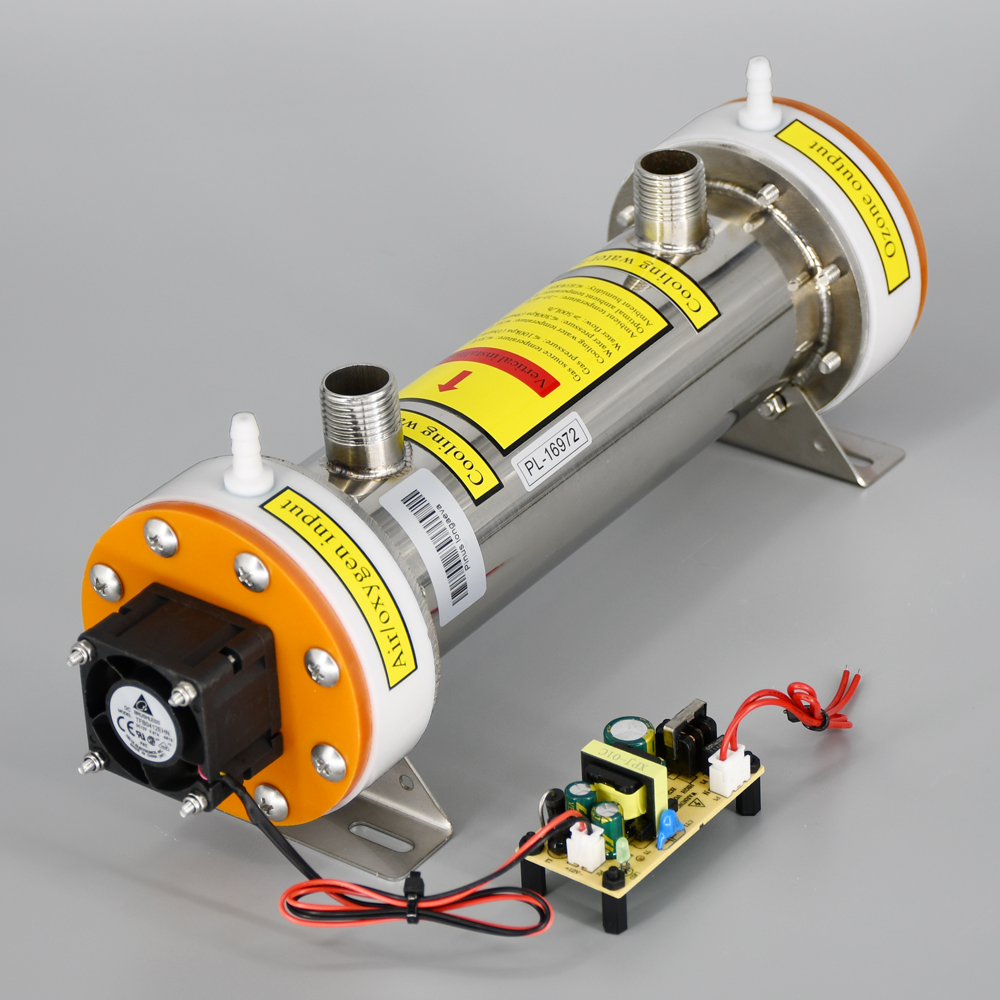

High-end 20G air cooling + water cooling narrow gap discharge quartz ozone tube

Patented product, high ozone concentration, smaller size, air cooling + water cooling, inner and outer electrodes are 316L stainless steel, lower temperature rise, high efficiency, longer service life.

.

.

.

High-end 20G air cooling + water cooling narrow gap discharge quartz ozone tube:

Ozone output: 20-30G/H

Maximum power: 200W

Optimal power: 180W

Air flow: ≤60L/min

Oxygen flow: ≤10L/min

.

Ozone PSU: we recommend that you use an ozone PSU with a maximum power of 200W

Frequency: ≤25khz

Input voltage: 3.5-4.5kv

.

Gas source temperature: ≤35℃

Gas pressure: ≤100kpa (1bar/0.1mpa)

.

Cooling water temperature: ≤35℃

Water pressure: ≤300kpa (3bar/0.3mpa)

Water flow: ≥500L/h

.

Ambient temperature: -10~45℃

Optimal ambient temperature: 1-20℃

Ambient humidity: ≤85%RH

.

Gas source: Air source, oxygen source

Flange: PTFE+316L stainless steel

Shell: 304 stainless steel

External electrode: 316L stainless steel

Dielectric material: high-purity quartz glass tube

Inner electrode: 316L stainless steel

Discharge gap: 0.5mm

.

Patented product

Brand: Pinus longaeva (We can print your logo and paste it on the ozone tube)

Product certification: CE FCC ROHS

Product application: Air purification and water sterilization

Service life / Warranty: More than 20000 hours / 2 years

Customized: Can be customized

.

Size:
Ozone tube: 320*92*120mm  2.3kg

.

Joint:

Air / oxygen input: We recommend that you use 4*7mm silicone tube or 5*8mm PU tube.

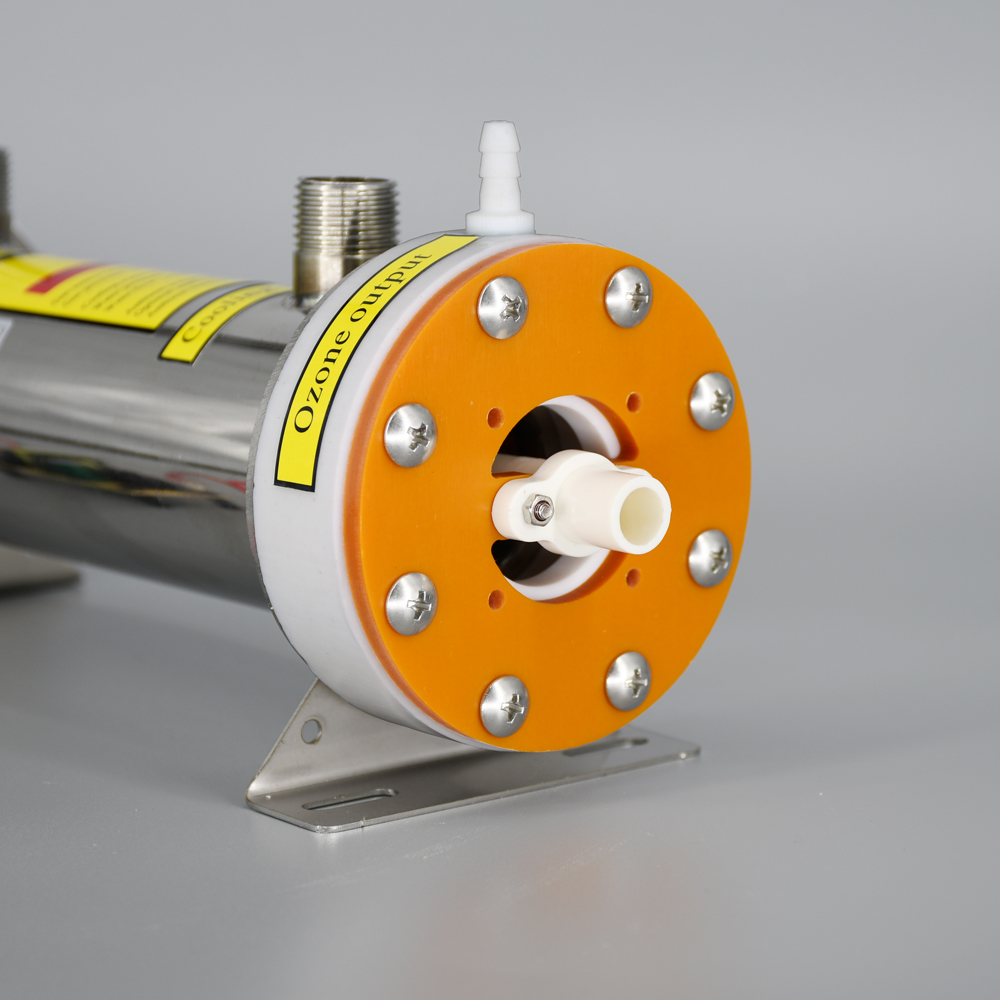

Ozone output: We recommend that you use 6*8mm Teflon tube.

If you need to change the connector, please contact us.

.

Cooling water input and output: 1/2 inch, DN15, 20mm external thread.

.

Water cooling system, please click here >>>

.

.

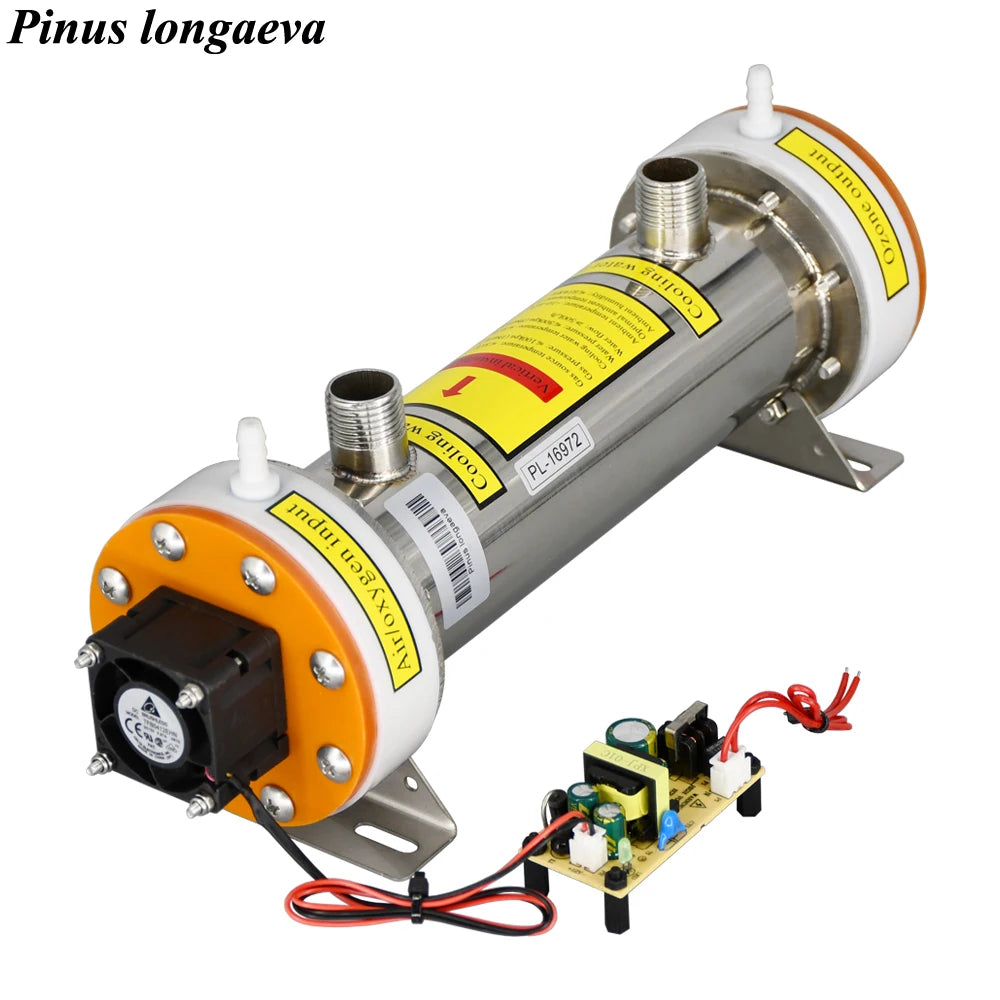

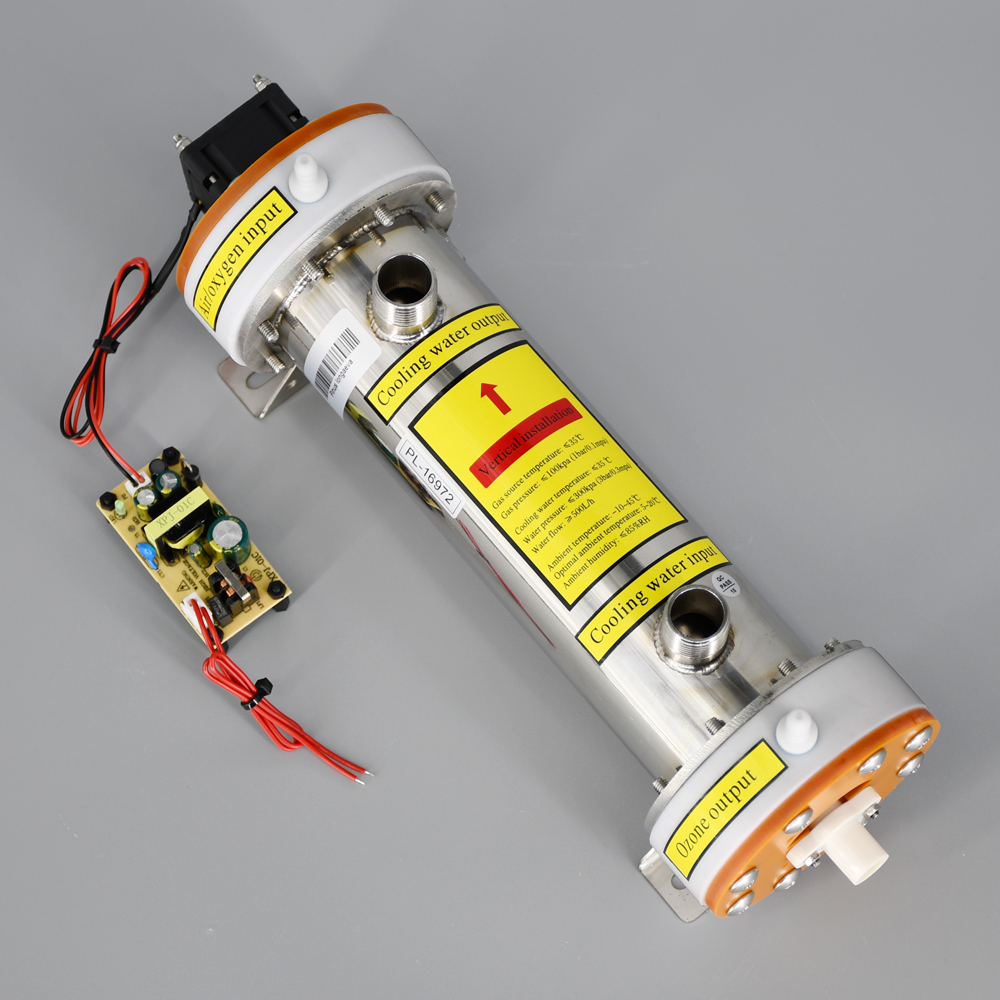

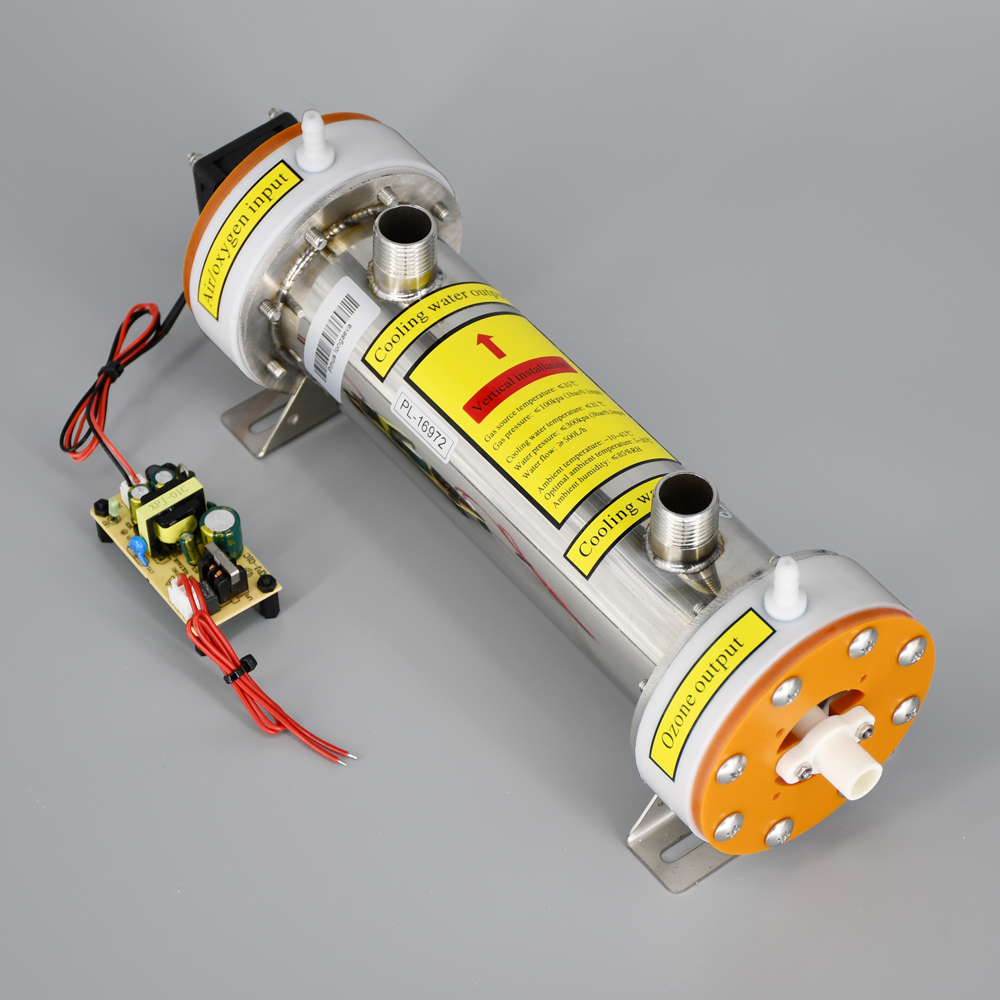

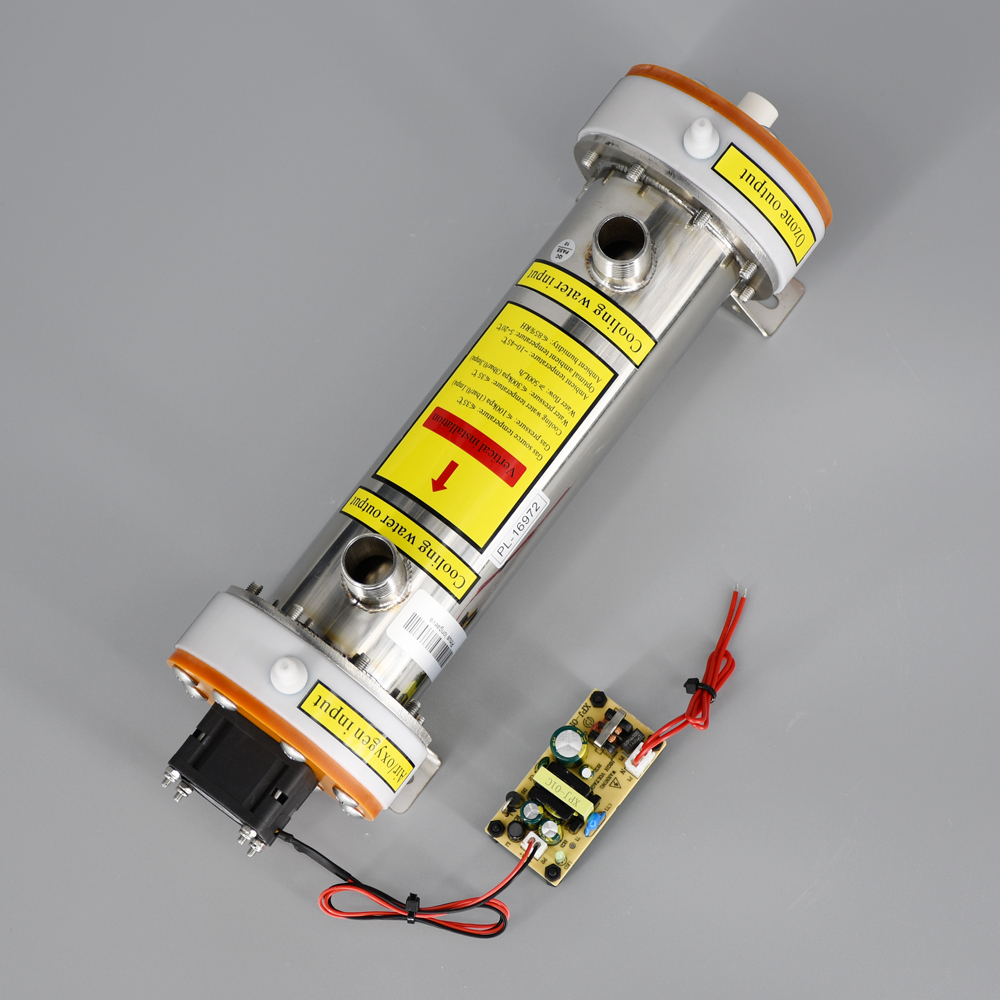

Product picture: (This is only an ozone tube, does not contain ozone PSU and other parts, if you need a completed ozone generator kit or ozone machine, please click here>>>)

........

.

.

Installation requirements:

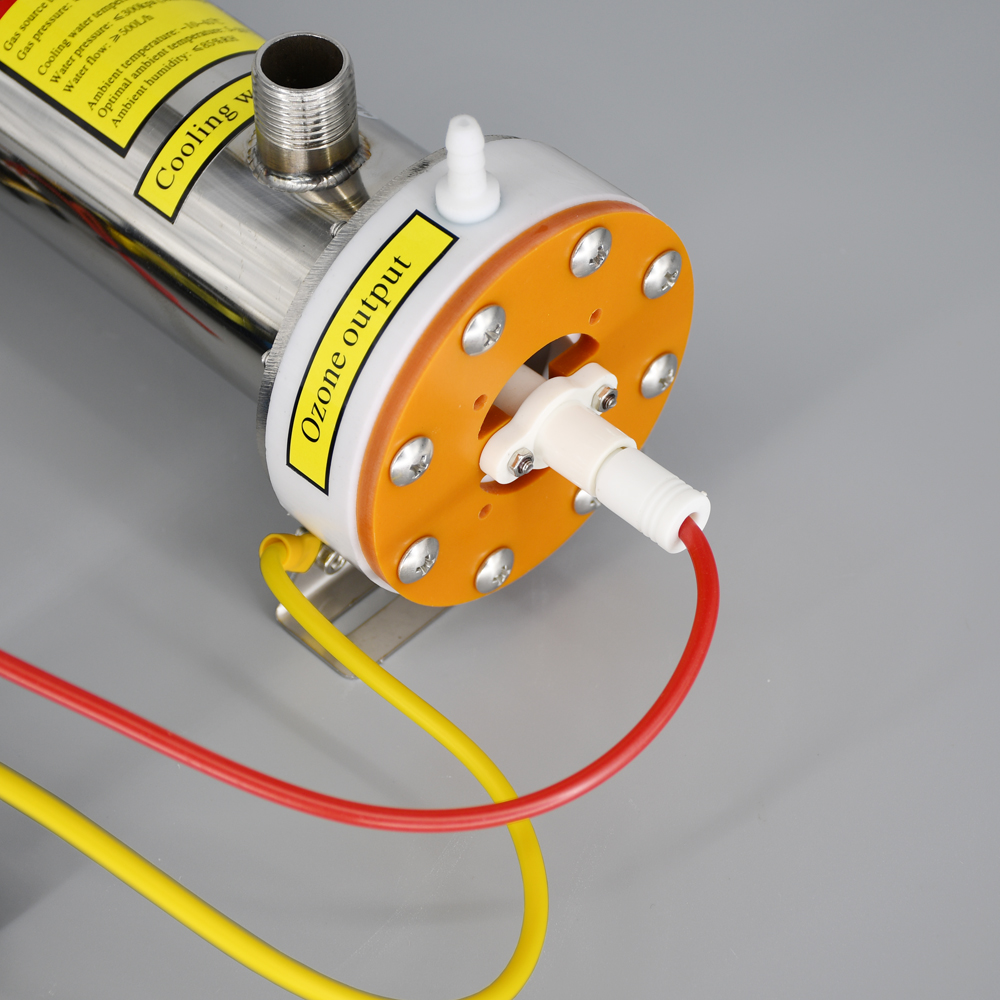

1. The red high-voltage line needs to be connected to the socket in the middle of the ozone tube, the yellow line needs to be fixed on the bracket of the ozone tube.

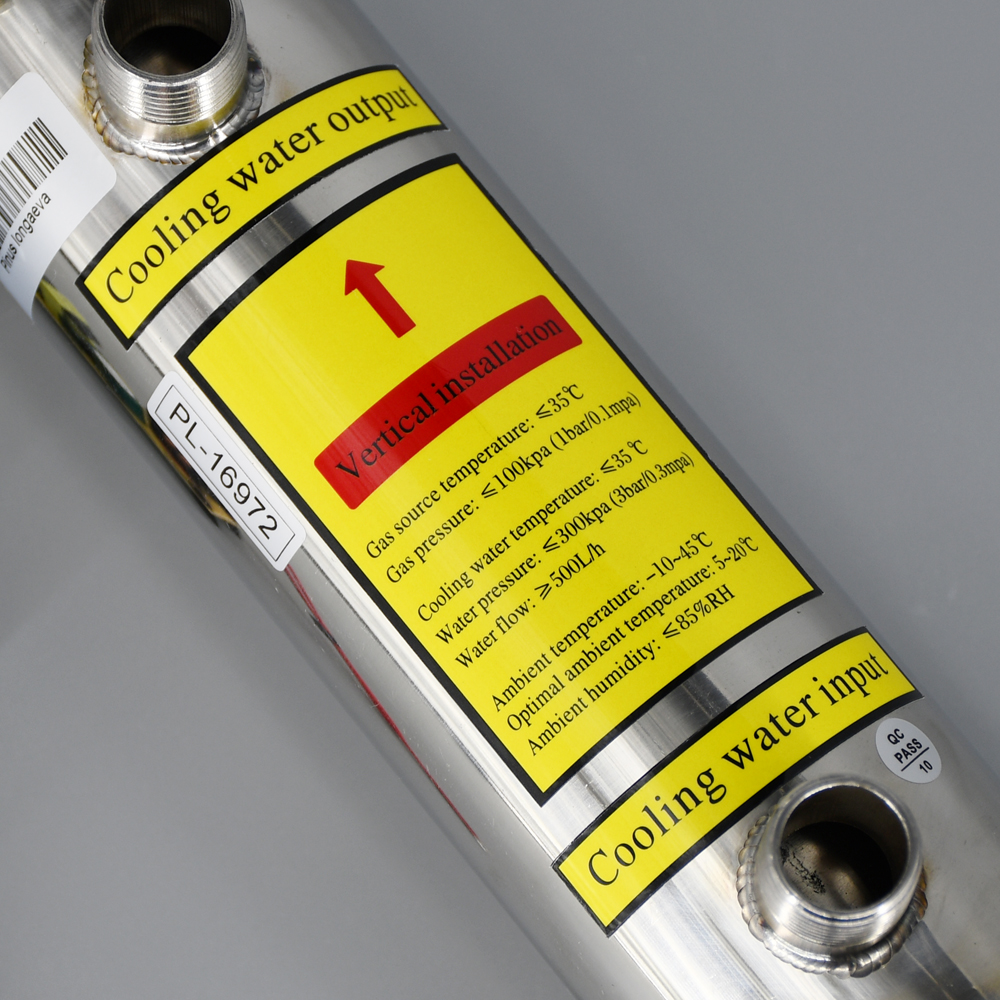

2. Please install the ozone tube vertically according to the ozone tube prompt, the water inlet at the bottom and the water outlet at the top.

The air inlet at the top and the ozone output at the bottom, this will prevent moisture from staying inside the ozone tube.
3. The closest distance between the ozone tube and the ozone PSU is 6cm.

.

When you get our products, you will get installation instructions, operation instructions and wiring diagrams.
If you still have any questions, you can contact us at any time.

.

.

NOTE:

If the ozone tube is purchased separately, please note:

Due to the different thickness of the dielectric material, the different discharge areas, and the different discharge gaps, the ozone tube will present different discharge densities with different high voltage power supplies.

.

For the burnout of the product arising from improper high-voltage power supplies such as due to excessive voltage, excessive power, improper cooling or other factors, the company will not provide warranty free of charge. A separate fee will be charged for after-sales maintenance.

.

If warranty is required, please inform us of the parameters and characteristics of the high-voltage power supply before purchase or send us the high-voltage power supply directly. We will adjust the corresponding capacitor parameters according to the characteristics of the high-voltage power supply.

.

Our company specializes in designing and developing various ozone tubes. If you cannot find the right ozone tube, we can R&D and manufacture according to your requirements.

.

.

.

.
